Every day, we rely on portable power. We use it for our phones, laptops, and electric vehicles. But have you ever wondered what is inside a lithium ion battery?
From the outside, it looks like a simple metal box. However, inside, there is a tiny, hard-working chemical factory. If you want to master modern energy storage, you need to understand how these power sources are built.
In this guide, we will break down the complex science. We will use simple terms to explain exactly how lithium ion batteries work. Let us open one up and look inside.
The Four Main Components
Every lithium based battery relies on four basic parts to function. If you remove even one part, the entire system fails. The core components are the anode and cathode, the electrolyte, and the separator.
1. The Cathode (The Positive Side)
The cathode is the positive electrode. It acts as the source of the lithium ions. The specific cathode material used will decide the battery’s total capacity and voltage.
A very common material used today is lithium cobalt oxide. Manufacturers love this material because it stores a massive amount of energy. Other batteries might use iron phosphate or manganese, depending on the job they need to do.
2. The Anode (The Negative Side)
The anode is the negative electrode. When the battery is fully charged, the anode holds the lithium ions. Most modern batteries use graphite (carbon) for the anode.
In the past, early designs tried to use pure lithium metal for the anode. However, pure lithium is highly reactive and caused safety issues. Today, using graphite makes the battery much safer while still holding plenty of power.
3. The Electrolyte (The Liquid Bridge)
The two electrodes cannot just sit next to each other. They need a way to connect chemically. This is where the electrolyte comes in. The electrolyte is typically a liquid.
This liquid is a carefully balanced mixture. It is made of organic solvents mixed with a special lithium salt. This fluid acts like an underwater highway. It allows ions to travel freely between the positive and negative sides.
4. The Separator (The Safety Wall)
Safety is the most important part of battery design. The separator is a micro-porous plastic film. It is incredibly thin, but it has a massive job.
The separator sits directly between the anode and the cathode. It allows the tiny ions to pass through its microscopic holes. However, it completely blocks the physical electrodes from touching each other. If they touch, it causes short circuiting.

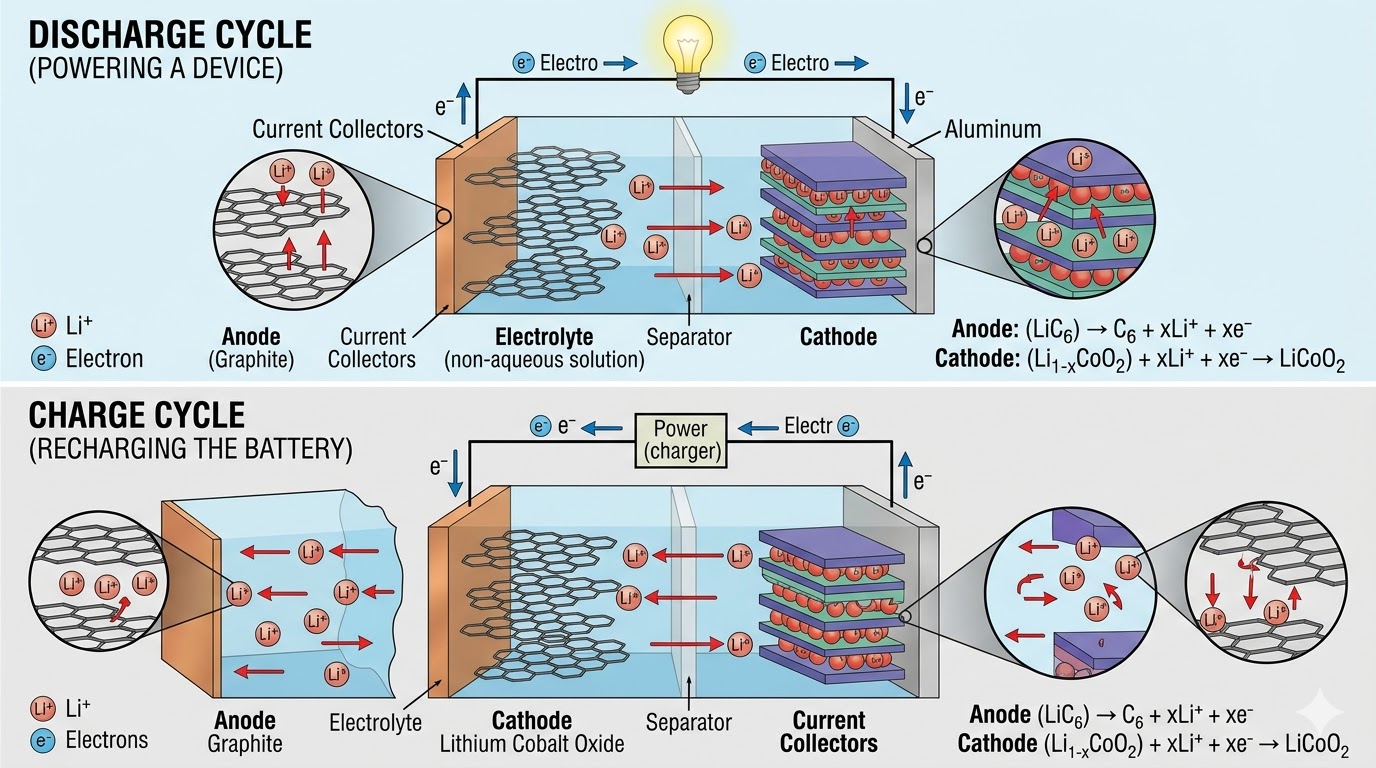

How the System Comes to Life
Now that we know the parts, let us look at the action. A battery does two main things: it charges and it discharges. It is a constant game of chemical ping-pong.
When you plug your device into the wall to charge, electricity flows in. This energy makes the ions leave the cathode. The lithium ions move through the liquid electrolyte, pass through the separator, and hide inside the graphite anode.
When you unplug your device and start using it, the process reverses. You begin to discharge lithium ions. They travel back to the cathode. This specific movement creates the electrical current that powers your screen, motor, or circuit board.
Inside the Cell: Formats and Shapes
You will not always see the raw internal parts. They are packed tightly into different shapes called lithium ion cells. There are three main shapes used in the industry today.
First, there are cylindrical cells. These look like standard AA batteries and are very tough. Second, there are prismatic cells, which are rigid and rectangular. Third, there are pouch cells, which are flat and flexible, often found in thin smartphones.
No matter the shape, the internal chemistry remains the same. The way the cell is built directly impacts the overall battery performance. Good packaging keeps the chemicals stable and prevents the battery from swelling.

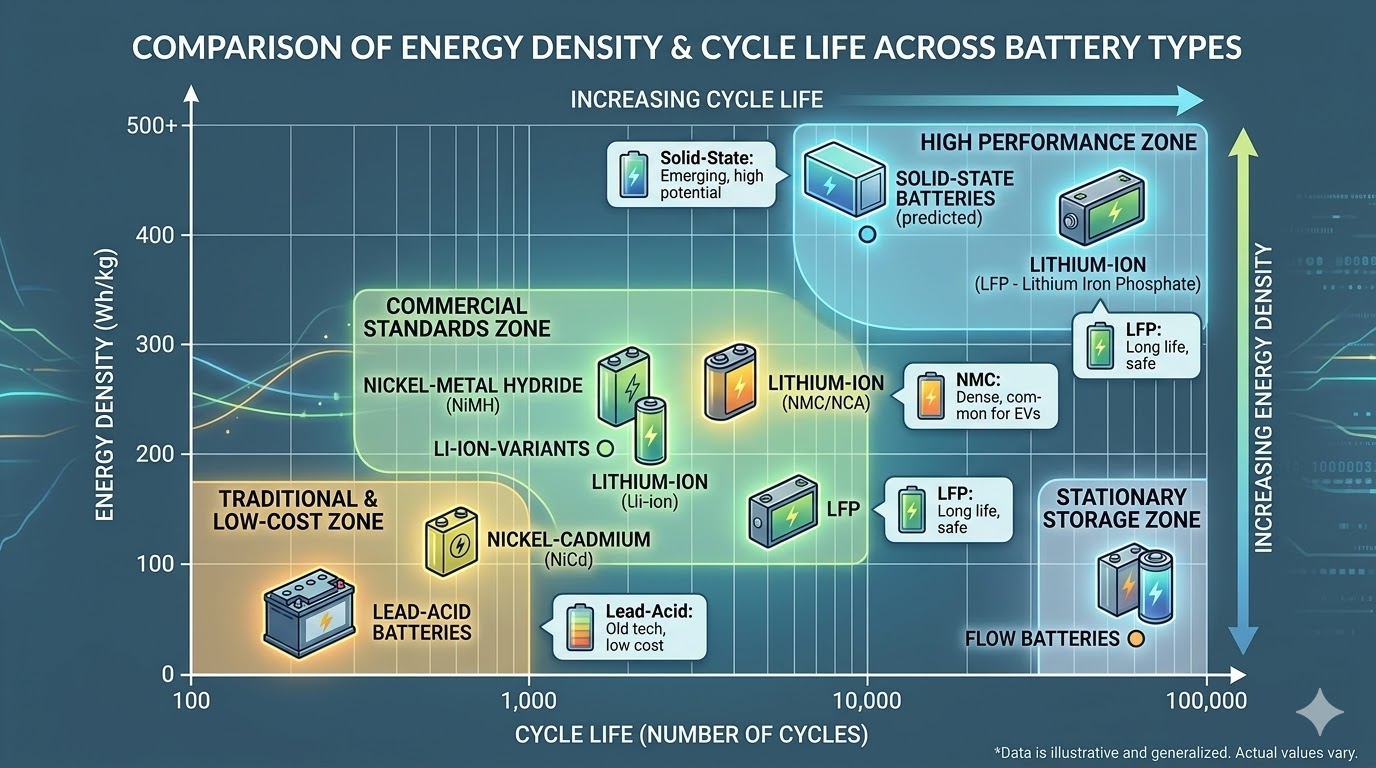

Why We Choose This Technology
Why do engineers and consumers prefer this technology over older types, like lead-acid or nickel-cadmium? The answer comes down to power and lifespan.
First, these batteries offer an incredibly high energy density. This simply means they can pack a huge amount of electrical power into a very small and lightweight space. This is exactly why solar energy systems can store massive amounts of backup power in a very compact area.
Second, they boast an excellent cycle life. A cycle is one full charge and one full discharge. High-quality lithium technology allows for a much longer cycle life compared to older battery types. A good ion battery can be charged hundreds or even thousands of times before it starts to lose its power capacity.
Understanding Safety and Risks
While this technology is amazing, it does come with strict rules. Because these batteries hold so much energy in a tiny space, safety systems are critical.
We mentioned the separator earlier. If a battery is crushed, punctured, or exposed to extreme heat, the separator can fail. This leads to internal short circuiting.
When a short circuit happens, the battery releases its energy all at once instead of slowly. This rapid release creates massive heat. This dangerous chain reaction is known as thermal runaway. It can cause the liquid inside to boil, leading to smoke or fire.
This is why high-quality manufacturing is so vital. Top-tier factories use advanced Battery Management Systems (BMS). A BMS is a tiny computer chip that monitors the temperature and voltage. It shuts the battery down before thermal runaway can ever begin.
Conclusion: The Power of Chemistry
Understanding what is inside a battery helps you make smarter choices. Whether you are buying consumer electronics or sourcing parts for industrial machines, knowing the internal chemistry is a huge advantage.
From the precise mix of the cathode to the protective plastic separator, every single component plays a crucial role. Together, they create a safe, rechargeable, and long-lasting power source that drives our modern world.
